| Specification | |
| Laser type | Sealed carbon dioxide glass laser tube |
| Laser power | 55W |
| Work area | 500x300 mm |
Maximum working speed | 1-600mm/s |
Positioning accuracy | ≤0.025mm |
| Lifting stroke of laser head | ≤30mm |
Cutting thickness | 20mm（Acrylic） |
| Material thickness | ≤22mm |
CCD Camera pixel | 4K 16MP |
| Focus method | Auto focus, manual focus |
Connection method | Support USB, network cable and WIFI connection. |
| Support system | Windows, Mac OS |
Software system | LightMaker or Lightburn(PC), LightMaker(Mobile phone) |
| Support software | Ps, Ai, CorelDRAW, AutoCAD, Solidworks, etc |
Supported file formats | JPG，DXF，AI、DST、PNG，BMP，TIF，SVG. etc |

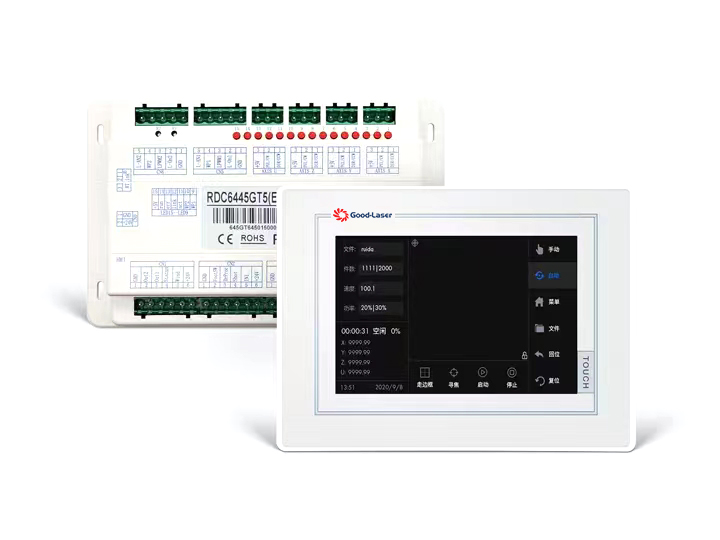

| Control method | 5inch LCD touch screen/ mobile phone APP/ PC software |

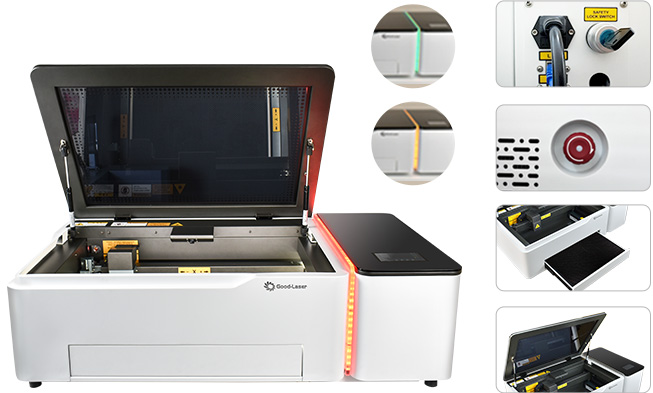

Safety protection | Interlock switch with open cover to stop, flick drawer to stop, emergency button, safety key, working status indicator |
| Cooling method | Built-in water cooling system (water tank & water chiller) |
| Power supply | 220V/110V AC 50Hz/60Hz |
| Total Weight | 60kg (132lbs) |

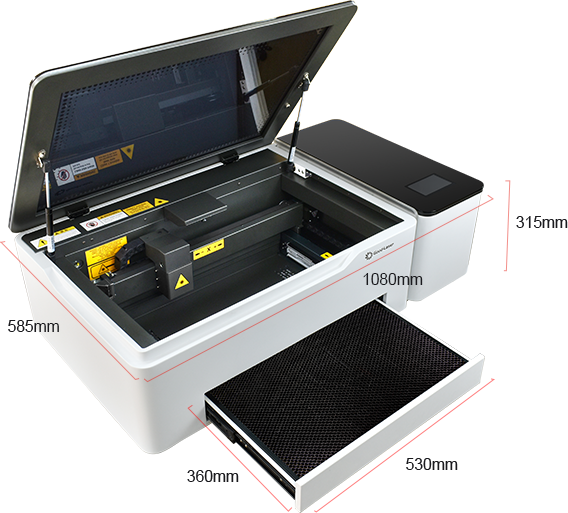

| Machine size | ≤1080*585*320mm |
| Water Cooling System Specification (built-in) | |
| Working voltage | DC 24V air cooling + aluminum coil |
| Water tank capacity | 4.5L |
| Maximum pressure | 5M |
| Water flow | 1000L/h or external dedicated CW3000 laser chiller (optional) |
| Air Pump Specification (built-in) | |
| Voltage | AC 220V/110V 16W |
| Displacement | 50L/min |
| Noise | ≤48dB |
| Air pressure | ≥0.05Mpa |
Suction System Specification | |
| Rated voltage | DC 24V/62W |
| Air volume | 280 m2/H |
| Noise | ≤50dB |
| Voltage | AC 220V/110V120W |
Filtration system | |
| Activated carbon filter+silent fan+industrial grade activated carbon bricks | |
